12 21 520 Replacing glowplug control unit (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
PARTIALLY detach rear acoustic cover.

Detach connector (1) from preheating control unit.

Release screw (2).

Tightening torque 12 23 2AZ .

Remove preheating control unit (3).

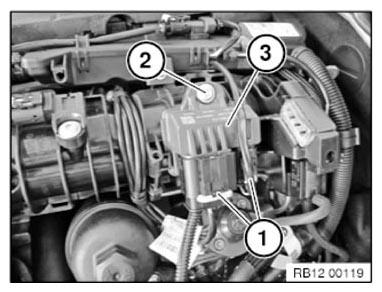

Fig 1: Identifying Preheating Control Unit Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the preheating control unit is replaced, the preheating control service function must be performed using the diagnosis system after it is replaced.

Installation note:

Assemble engine.
