12 14 650 Replacing suction pressure sensor on pressure pipe (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 5AZ .

Pull suction pressure sensor (3) out of pressure pipe.

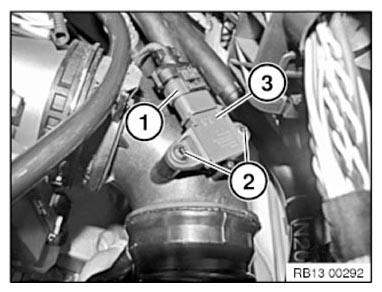

Fig 1: Identifying Suction Pressure Sensor, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check sealing ring for damage. Replace damaged sealing ring.

When installing, coat sealing ring with suitable lubricant.

Fig 2: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
Check stored fault message.
Delete fault memory.
