34 41... Electromechanical parking brake - emergency release

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

IMPORTANT: Secure vehicle against rolling, e.g. with chocks.

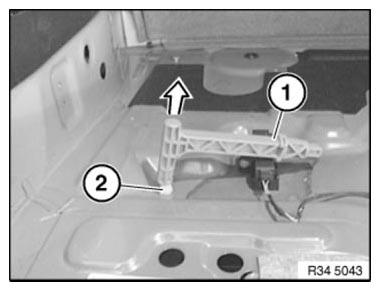

Attach release tool (1) at release point (2).

Forcefully pull release tool against mechanical resistance upwards in direction of arrow until a clear increase in force can be felt and the parking brake can be clearly heard to release.

Fig 1: Pulling Release Tool Against Mechanical Resistance

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Startup after emergency release:

Switch on ignition.
Press brake button with brake pedal depressed.
The indicator lamp in the instrument cluster goes out as soon as the parking brake is released.
