12 61 280 Removing and installing/replacing oil pressure sensor (N55 Hybrid)
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary tasks:
- Switch off ignition.
- Remove IGNITION COIL COVER .
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.

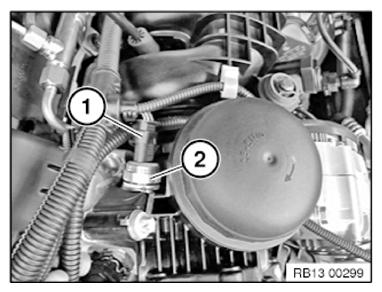

Unlock connector (1) and remove.
Release oil pressure sensor (2).
Tightening torque 12 61 1AZ .
Installation note:
Check engine oil level, top up engine oil if necessary.
