13 54 030 Removing and installing/sealing throttle body (N20)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Unlock tank ventilation line (1) and disconnect.

Unlock connector (2) and remove.

Release screws (3).

Tightening torque 13 54 1AZ .

Remove throttle body (4).

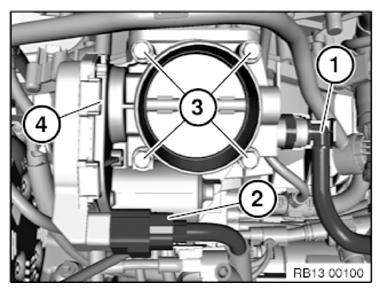

Fig 1: Identifying Tank Ventilation Line, Throttle Body, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1) of throttle body (2).

Fig 2: Identifying Throttle Body Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored fault message.

Delete fault memory.
