61 31 492 Replacing level switch for windscreen washer system
Necessary preliminary tasks
- Remove WASHER FLUID RESERVOIR .

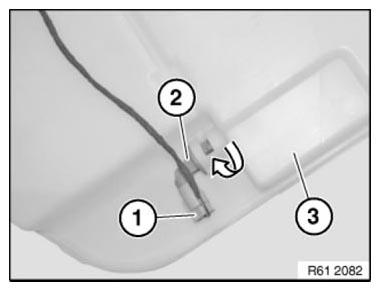

Unfasten plug connection (1) and disconnect.
Turn washer fluid level switch (2) in direction of arrow and pull downwards out of washer fluid reservoir (3).
