61 31 117 Removing and installing/replacing power window switch (driver's side)

Necessary preliminary tasks

• Remove front door trim panel, left. See 51 41 000 REMOVING AND INSTALLING (REPLACING) FRONT LEFT OR RIGHT DOOR TRIM PANEL .

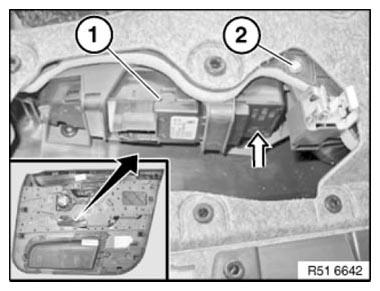

Release screw (2).

Tightening torque 51 41 2AZ .

Press power window switch (1) upwards in direction of arrow and remove.

Fig 1: Removing Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

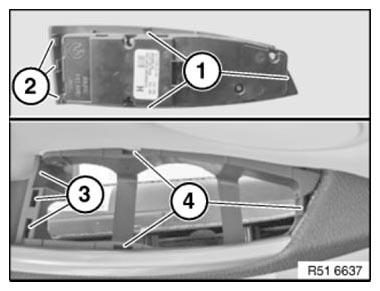

Hook journals (1) into position (4). Lock retaining lugs (2) in bushes (3).

Fig 2: Identifying Retaining Lugs, Bushes And Journals

Courtesy of BMW OF NORTH AMERICA, INC.
