61 14 010 Removing and installing/renewing power distribution box (on battery)

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Necessary preliminary tasks

Fold up covers (1). Unscrew nuts (2). Tightening torque 61 21 2AZ .

Unscrew nut (3).

Tightening torque 61 21 3AZ .

Disconnect plug connection (4).

Fig 1: Identifying Plug Connections, Covers And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking brackets (1) downwards and unclip in direction of arrow.

If necessary, using a screwdriver, expand locking bracket (1) at lower end and clip out.

Remove power distribution box (2) towards top.

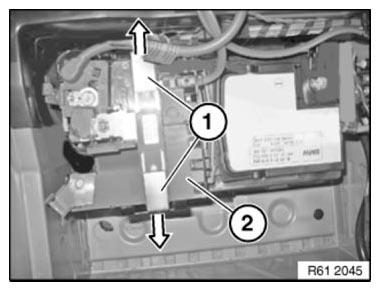

Fig 2: Releasing Locking Brackets

Courtesy of BMW OF NORTH AMERICA, INC.
