65 20 250 Removing and installing/replacing rear telephone aerial

Necessary preliminary tasks

NOTE: Picture for example purposes.

Unfasten plug connection (1) and disconnect.

Slacken nut (2).

Unlock telephone aerial (3) and remove.

Installation:

Make sure telephone aerial (3) is correctly seated.

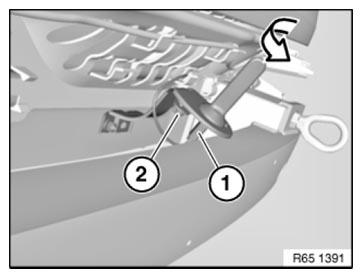

Fig 1: Disconnecting Plug Connection And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.
