51 24 020 Removing and installing/replacing rear lid lock for lower rear lid

Necessary preliminary tasks

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out rear lid lock (2).

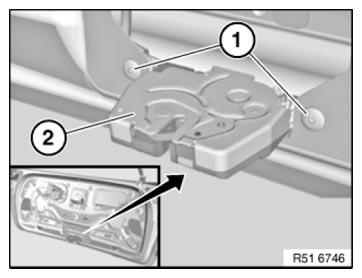

Fig 1: Identifying Rear Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect Soft Close Bowden cable (1).

If necessary, disengage emergency release (3).

Remove rear lid lock (2).

Disconnect plug connection (4).

Installation:

Note different encoding of plug connections.

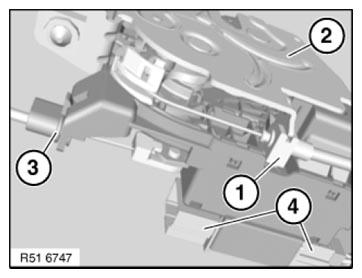

Fig 2: Identifying Rear Lid Lock, Bowden Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
