51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

Special tools required:

Graphics are similar.

Lever out trim strip (1) with special tool 00 9 321 starting at the front.

Unclip trim strip (1) in direction of arrow.

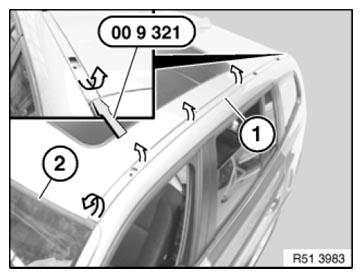

Fig 1: Disconnecting Trim Strip Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) of clips (2) must not be damaged.

If necessary, replace clips (2).

Emergency strategy if T-bolt is broken:

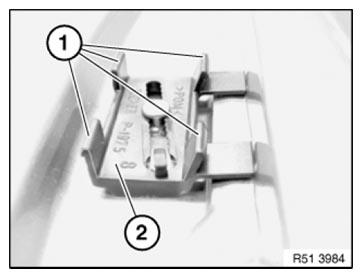

Fig 2: Identifying Roof Strip Catches And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Place front trim strip (2) against seal (1).

Trim strip (2) must be flush with edge (3) at rear.

Clip trim strip (2) into place completely.

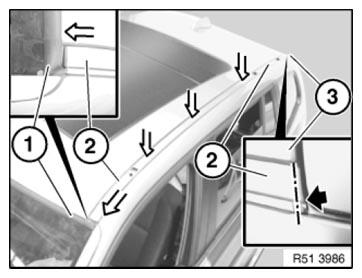

Fig 3: Locating Front Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

5113280 Removing and installing/replacing trim strip on roof frame at left or right
