51 22 225 Removing and installing or replacing inside door opener in left or right rear door

Necessary preliminary tasks

Unlock hinge bolt (1) with screwdriver (2) in direction of arrow.

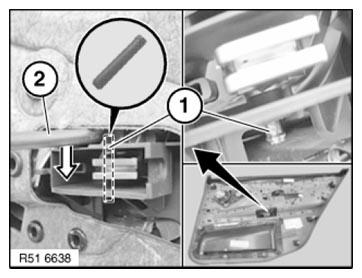

Fig 1: Removing Hinge Bolt Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Secure door opener (2) against falling out.

Pull out hinge bolt (1) in direction of arrow with a suitable tool until door opener (2) is free.

Do no pull out hinge bolt entirely.

Installation:

Hinge bolt (1) must snap clearly into place.

Check hinge bolt (1) for damage and replace if necessary.

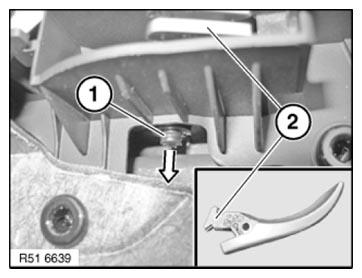

Fig 2: Pulling Out Hinge Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
