51 12 164 Removing and installing/replacing trim on bumper trim

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

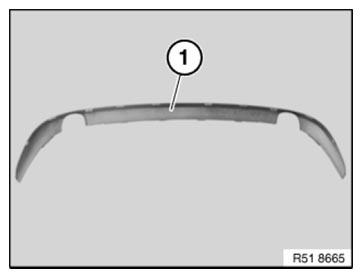

Fig 1: Identifying Assemble Rear Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs and guides on rear bumper trim (1) must not be damaged.

Fig 2: Identifying Rear Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
