51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

Special tools required:

NOTE: Trim strip (1) must not be bent during removal.

Starting at bottom, unclip trim strip (1) 00 9 317 from tabs (2) in succession with special tool.

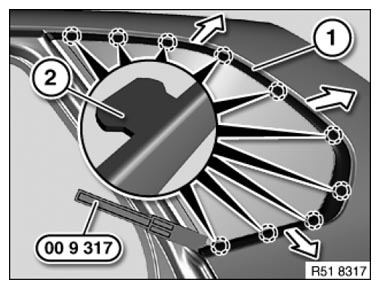

Fig 1: Disconnecting Trim Strip From Tabs Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (2) must not be missing or damaged.

Lock Dual-Look (1) on trim strip by applying pressure.

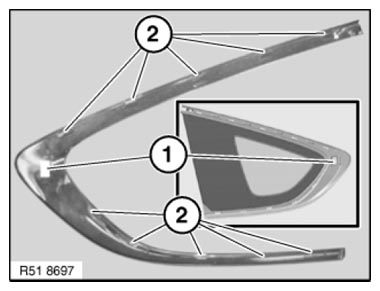

Fig 2: Identifying Dual-Look And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
