51 36 030 Removing and installing/replacing trim on left or right C pillar (on outside at rear side window)

Special tools required:

Trim (1) is secured to side window (3) with double-sided adhesive tape.

Detach trim (1) with special tool 00 9 322 from side window (2).

Completely remove adhesive residue.

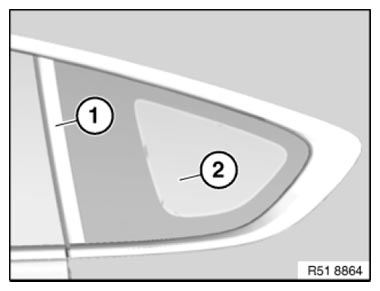

Fig 1: Identifying Side Window And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe NOTES for securing components with adhesive tape.

Ensure correct gap dimension (A) between trim (1) and door window glass (3).

A = 4.7± 0.8 mm

Affix trim (1) according to dimension (A) to side window (2)

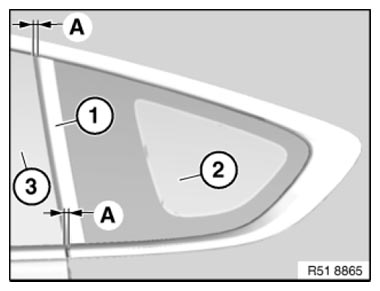

Fig 2: Identifying Gap Between Trim And Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
