51 21 170 Removing and installing or replacing outside handle from left or right front door

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

(Graphics used originate from F01)

Lever out plug (1).

Installation:

If necessary, fit new plug.

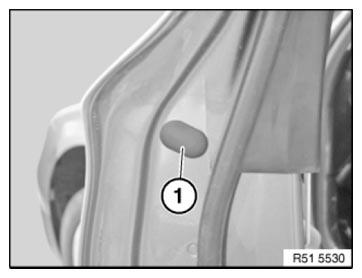

Fig 1: Identifying Door Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamping bolt (2) from carrier for outside door handle (3).

Fig 2: Identifying Outside Door Handle And Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Guide rear of outside door handle (1) out in direction of arrow.

Swivel outside door handle (1) further in direction of arrow and guide out at front.

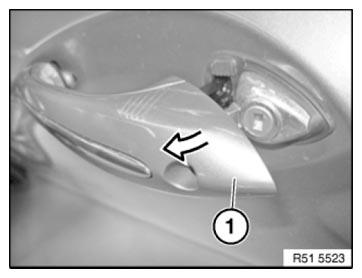

Fig 3: Removing Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

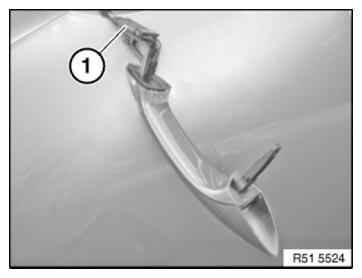

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
