51 31 310 Removing and installing upper rear lid cover

Special tools required:

Necessary preliminary tasks

Unscrew nuts (3).

Tightening torque 51 71 1AZ .

Unfasten screws (2).

Tightening torque 51 71 1AZ .

Close rear lid (4) and unclip clips (1). Remove rear lid cover.

IMPORTANT: Carefully remove cover in upward direction from rear lid (4) (with aid of a 2nd person) and place on a clean surface.

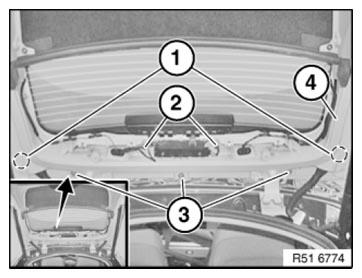

Fig 1: Identifying Rear Lid, Clips, Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (3), slider (1) and bump stop (4) must not be damaged.

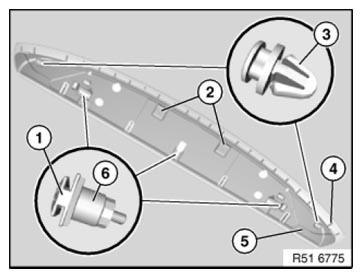

Fig 2: Identifying Bump Stop, Rear Lid Cover, Slider, Screws And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out height adjustment (A) of rear lid cover (5) via 16 mm WAF adjusting screws (6) (bihexagonal).

Make sure there is a uniform gap all round.

Measure underprotrusion with special tool 51 0 010 :

A 1±1 mm

B 5±1 mm

X 1...4 mm

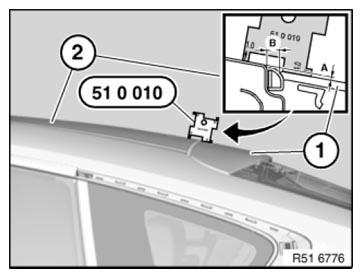

Fig 3: Measuring Underprotrusion Using Special Tool (51 0 010)

Courtesy of BMW OF NORTH AMERICA, INC.
