51 31 021 Removing and installing/replacing windscreen rubber surround

Special tools required:

51 3 320

Necessary preliminary work

Remove windscreen . See 51 31 011 REPLACE WINDSCREEN or 51 31 000 REMOVING AND INSTALLING WINDSCREEN .

IMPORTANT: The glass activator to pre-treat the area of the windscreen adhesive bead may not come in contact with the adhesive area of the cover.
The bonding result of the cover is otherwise compromised.
Therefore, the cover must be installed prior to application of the glass activator.
Following INSTRUCTIONS for bonding components with double-sided adhesive tape.

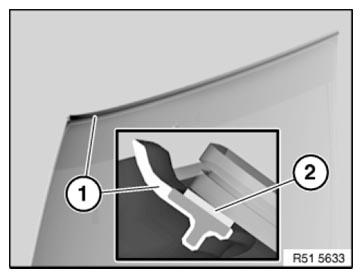

Detach cover (1).

Remove remnants of adhesive tape (2).

Clean bonding surface.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Fig 1: Identifying Windscreen Adhesive Tape And Cover

G08422007

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-treat adhesive area with Sika-Aktivator-205.

Air drying time: ≥ 1 minute

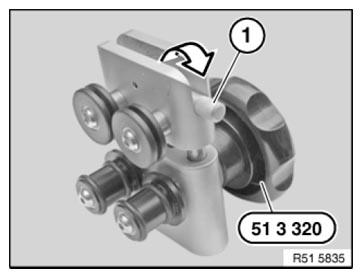

Reposition lever (1) and open special tool 51 3 320 .

Fig 2: Repositioning Of Lever Using Special Tool (51 3 320)

G08422008

Courtesy of BMW OF NORTH AMERICA, INC.

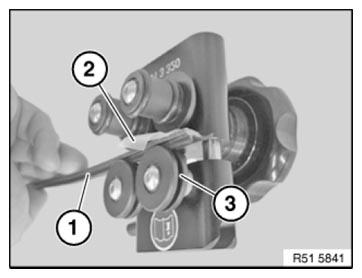

Pull off protective film (2) in stages from adhesive tape.

Insert cover (1) in guide pulleys (3).

Fig 3: Pulling Protective Film From Adhesive Tape

G08422009

Courtesy of BMW OF NORTH AMERICA, INC.

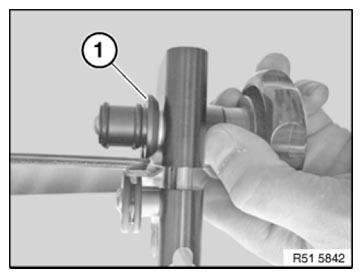

Place special tool with contact rollers (1) up against window edge.

Align cover to window outer edge.

Fit cover and visually check for perfect seating.

Fig 4: Aligning Cover To Window Outer Edge

G08422010

Courtesy of BMW OF NORTH AMERICA, INC.

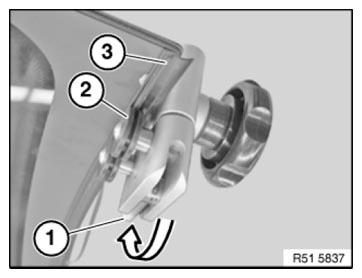

Reposition lever (1) and close special tool.

Make cover (3) is correctly seated in guide pulleys (2).

Fig 5: Repositioning Of Lever

G08422011

Courtesy of BMW OF NORTH AMERICA, INC.

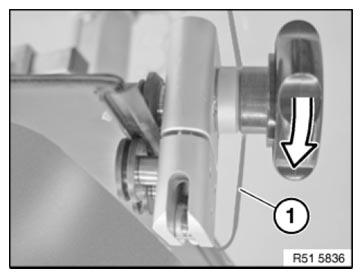

Continue to pull off protective film (1) in stages from adhesive tape.

Run special tool with hand wheel over entire upper window edge.

Fig 6: Pulling Protective Film From Adhesive Tape

G08422012

Courtesy of BMW OF NORTH AMERICA, INC.

5131021 Removing and installing/replacing windscreen rubber surround
