41 00... Overview Of Adhesive Cartridge Guns

Adhesive gun 83 19 2 149 522

Obtainable via Electronic Parts Catalogue.

Usable for adhesives K4, K5a.

Including insert 1:1 and 2:1.

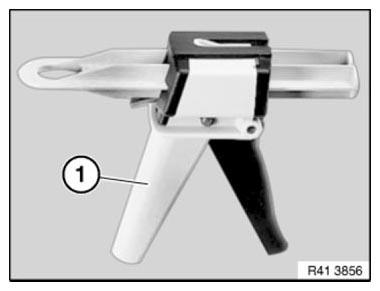

Fig 1: Identifying Adhesive Gun 83 19 2 149 522

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive gun 81 49 0 443 166

Usable for adhesive K3.

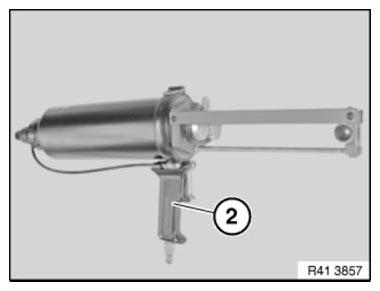

Fig 2: Identifying Adhesive Gun 81 49 0 443 166

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 213 059

Useable for adhesives K1, K2, K5b, sealant D1, window glass adhesive and all 310 ml Euro cartridges.

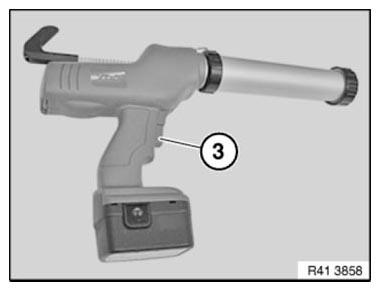

Fig 3: Identifying Adhesive Cartridge Gun 81 49 2 213 059

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 83 30 0 494 836

Usable for structural foam HS2.

NOTE: Special tool number 41 3 010

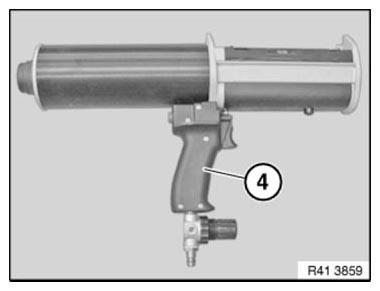

Fig 4: Identifying Adhesive Cartridge Gun 83 30 0 494 836

Courtesy of BMW OF NORTH AMERICA, INC.
