Luggage compartment floor and side member reinforcements

Clean all  bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new parts and rivet with blind rivets.

Weld new parts in areas (1).

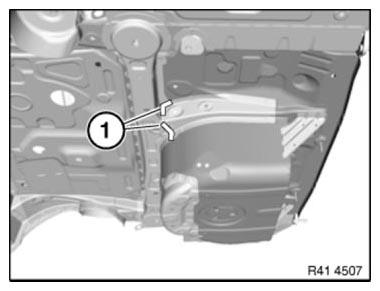

Fig 1: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in areas (1), install 2 EMC SCREWS .

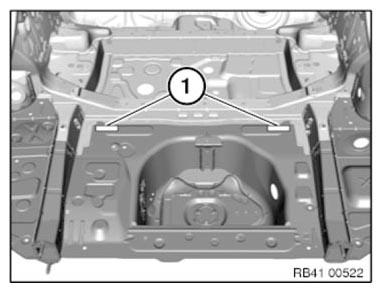

Fig 2: Identifying Adhesive Applying Areas

Courtesy of BMW OF NORTH AMERICA, INC.
