52 25 380 Removing and installing/replacing left or right rear head restraint mount

Necessary preliminary tasks

• Remove BACKREST COVER .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove headrest support (3).

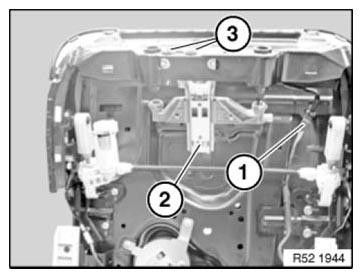

Fig 1: Identifying Plug Connection, Screws And Headrest Support

Courtesy of BMW OF NORTH AMERICA, INC.

5225380 Removing and installing/replacing left or right rear head restraint mount
