52 25 201 Removing and installing/replacing rear panel on right rear seat back

Unclip rear panel in marked area and remove upwards.

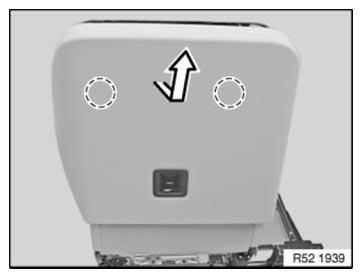

Fig 1: Removing Rear Panel On Right Rear Seat Back

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and guide (2) must not be damaged.

If necessary, replace defective clips or rear panel.

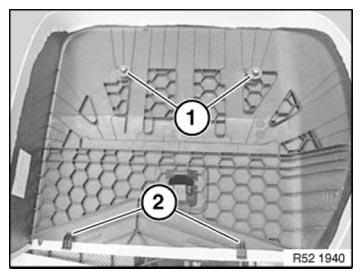

Fig 2: Identifying Rear Panel Clips And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
