52 25 042 Removing and installing/replacing cover for backrest angle adjustment on left or right

Necessary preliminary tasks

Move seat forwards fully.

View of seat underside:

Press release (1) with suitable aid and pull off cover.

Unclip trim (2) from operating unit.

Installation:

Ensure trim is correctly seated in marked area (3).

Fig 1: Moving Seat Forwards

G08424636

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully turn trim (1) in downward direction until fastening point of operating unit is uncovered.

Release screw (2).

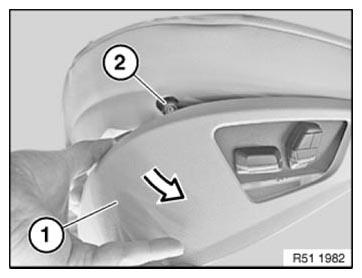

Fig 2: Turning Operating Unit In Downward Direction

G08424637

Courtesy of BMW OF NORTH AMERICA, INC.

Turn operating unit (1) in downward direction.

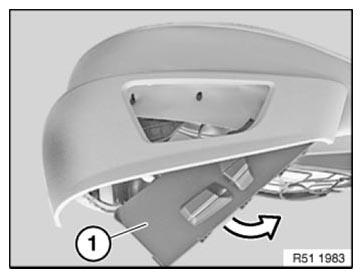

Fig 3: Turning Operating Unit In Downward Direction

G08424638

Courtesy of BMW OF NORTH AMERICA, INC.

Press release (1) with suitable aid and pull off cover.

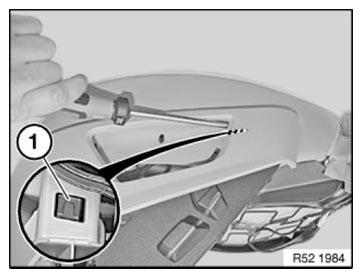

Fig 4: Identifying Release Tab

G08424639

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover and cover mount must not be damaged.

If necessary, replace faulty parts.

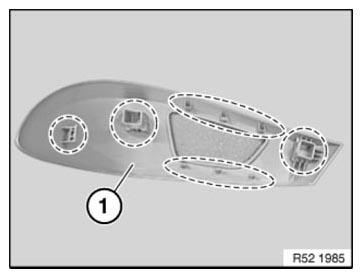

Fig 5: Identifying Cover And Cover Mount

G08424640

Courtesy of BMW OF NORTH AMERICA, INC.
