52 25 030 Removing and installing/replacing armrest for rear seat backrest

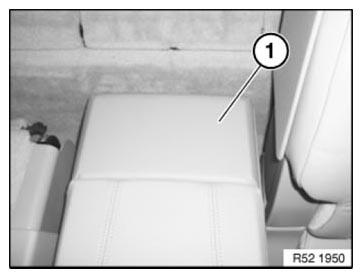

Unclip cover (1) upwards.

Installation note:

Retaining lugs must not be damaged.

Replace cover if necessary.

Fig 1: Identifying Rear Seat Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

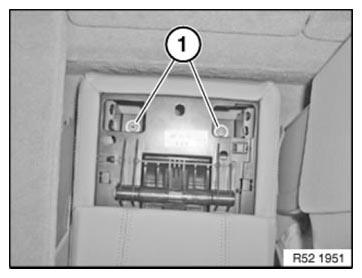

Release screws (1).

Tightening torque 52 25 02AZ.

Lift armrest out of vehicle.

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

5225030 Removing and installing/replacing armrest for rear seat backrest
