63 13 200 Removing and installing/replacing front left or right auxiliary direction indicator

Special tools required:

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Carefully unlock front auxiliary turn indicator (1) using special tools 00 9 341 .

Remove front auxiliary direction indicator (1) in direction of arrow.

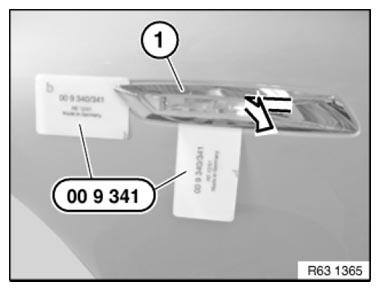

Fig 1: Removing Front Auxiliary Direction Indicator Using Special Tools (00 9 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect. Remove front auxiliary direction indicator (2).

Installation:

Tension springs (3) and retaining lugs (4) must not be damaged.

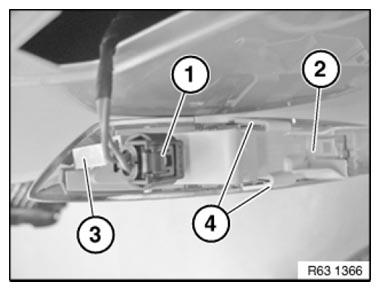

Fig 2: Identifying Plug Connection, Front Auxiliary Direction Indicator, Tension Springs And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
