63 99 273 Replacing bulb for turn indicator, front left

IMPORTANT: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

NOTE: Front wheel removed for purposes of clarity.

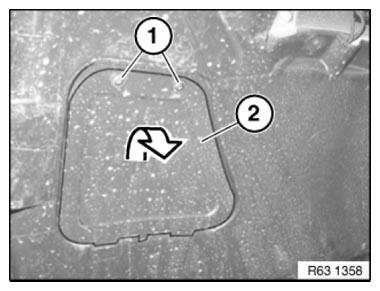

Release screws (1).

Remove lid (2) in direction of arrow.

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

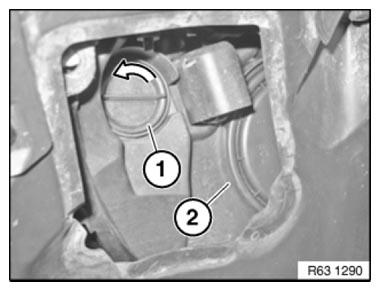

Turn bulb holder (1) approx. 30° anticlockwise and remove from headlight (2).

Fig 2: Turning Bulb Holder Anticlockwise

Courtesy of BMW OF NORTH AMERICA, INC.

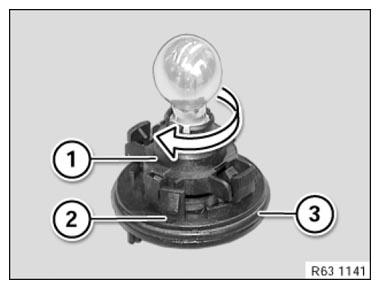

Turn bulb with socket (1) in direction of arrow and remove from bulb holder (2) toward the top.

Installation note:

Check that bulb with socket (1) and sealing ring (3) on bulb holder (2) are correctly seated.

Fig 3: Turning Bulb With Socket

Courtesy of BMW OF NORTH AMERICA, INC.
