63 10 004 Adjusting headlights

COMPLY with test prerequisites for headlight adjustment.

IMPORTANT: Do not damage adjusting screws when adjusting headlights.

Remove lid (1) and turn sealing cap (2) in direction of arrow and remove.

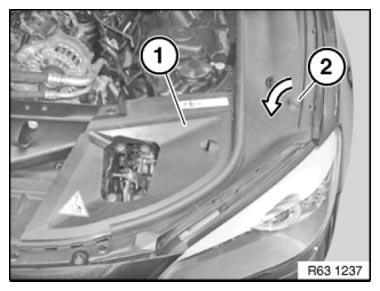

Fig 1: Turning Sealing Cap Counter Clockwise

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out headlight adjustment at adjusting screws below openings (1) and (2).

Adjusting screw primarily for vertical adjustment
Adjusting screw primarily for lateral adjustment

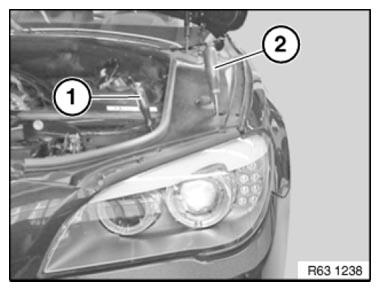

Fig 2: Identifying Headlight Assembly Adjusting Screws Below Openings
Courtesy of BMW OF NORTH AMERICA, INC.

Attention: for height adjustment of LED headlights F01, F02, F03!

If necessary, required height adjustment may only be carried out through height adjustment of LED headlights (turn adjusting screw (1) anticlockwise)!

LED headlight adjusted too low:
Adjust LED headlight higher to correct dimension at adjusting screw (1) (turn adjusting screw (1) anticlockwise).
LED headlight adjusted too high:
Adjust LED headlight at adjusting screw (1) too low (turn adjusting screw (1) clockwise). Only afterwards adjust LED headlight higher to correct dimension at adjusting screw (1) (turn adjusting screw (1) anticlockwise).

After setting:

Check headlight adjustment twice. Do this by switching headlight off and on twice.
