66 53 030 Removing and installing/replacing side view camera on left or right

NOTE: Picture shows front wheel removed for purposes of clarity

Release screws (1).

Fold wheel arch panel (2) to one side.

Fig 1: Identifying Wheel Arch Panel And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove side view camera (2).

Unfasten plug connection (3) and disconnect.

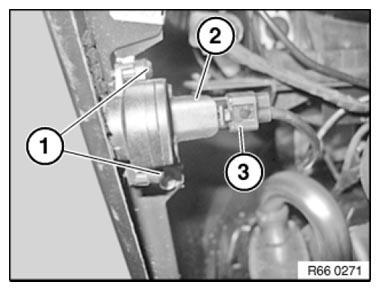

Fig 2: Identifying Side View Camera, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

"Teaching" using the BMW diagnosis system:
