3.0 Applying the adhesive

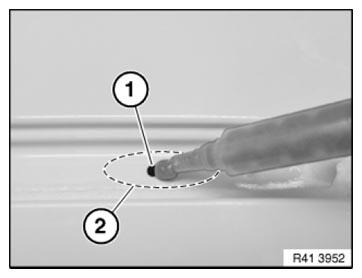

• Fill the hole (1) created by the torn-off T-pin with adhesive and spread over a length of approx. 4 cm (2) in the roof channel.
  IMPORTANT: The hole must be completely filled or sealed with adhesive!
  Fig 1: Applying Adhesive On Roof Channel Hole

  Courtesy of BMW OF NORTH AMERICA, INC.

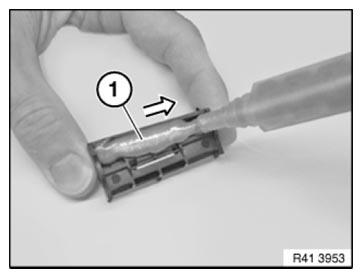

Apply adhesive bead (1) to the underside of the clip.

In so doing, fill channel of clip with adhesive.

Fig 2: Applying Adhesive Bead On Underside Of Clip

Courtesy of BMW OF NORTH AMERICA, INC.

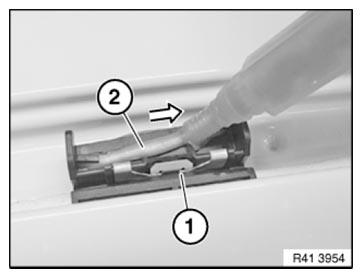

Move clip (1) into position and secure by hand.

If the adhesive is not already emerging evenly through the channel, apply additional adhesive from above.

Adhesive bead (2) must be below the clip height.

Fig 3: Applying Adhesive Bead Below Clip Height

Courtesy of BMW OF NORTH AMERICA, INC.

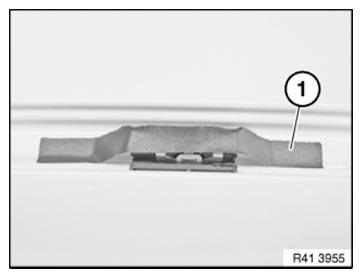

Secure clip with adhesive tape (1), approx. 150 mm long.

Apply adhesive tape in direction of travel.

Fig 4: Securing Clip Using Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
