51 49... Removing and installing/replacing rear lid storage shelf

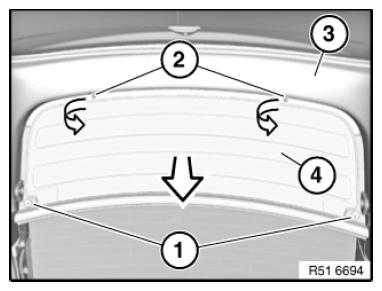

• Release screws (1), turn retainers (2) on trim panel (3) 90° to release, remove cover (4) in direction of arrow

Tightening torque: 51 49 3AZ

Fig 1: Positioning Cargo Cover Frame Using Tyre Iron

Courtesy of BMW OF NORTH AMERICA, INC.

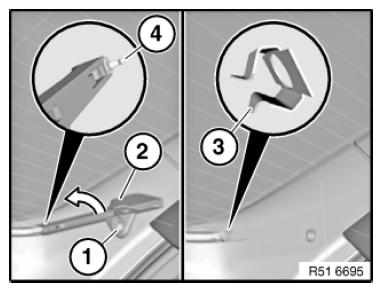

Release retaining rail (2) screw (1) and unclip journal (4) from retainer (3) in direction of arrow.

Tightening torque: 51 49 4AZ

Retainer (3) and journal (4) must not be damaged, replace if necessary.
