51 45... Removing and installing/replacing lower instrument panel cover
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

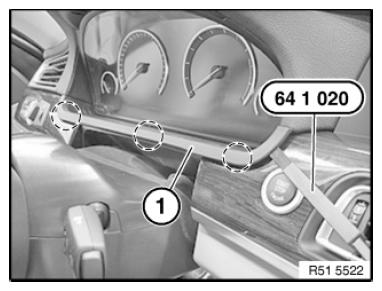

Carefully unclip cover (1) with special tool 64 1 020 at marked points and remove.
Installation note:
If necessary, replace faulty clamps on back of cover (1).
Replacement
Modify clamps.
