Overview of rivet gun

Riveting of gas generator housing and holders for folding pack with rivet gun.

The interchangeable head is changed for the different work operations.

Riveting of gas generator housing with:

  1. 17/36 nosepiece and short shank

    Riveting of holders for folding pack:

  2. 17/40 nosepiece and long shank

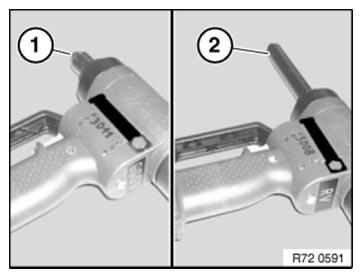

    Fig 1: Overview Of Rivet Gun
    G08421609Courtesy of BMW OF NORTH AMERICA, INC.
