Replacing model designation

Mark position of model designation (1) with yellow plastic adhesive tape (2).

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1).

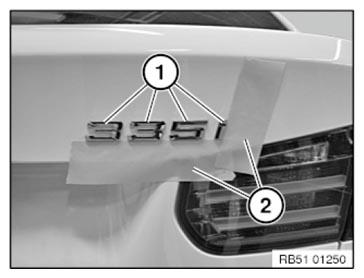

Fig 1: Identifying Model Designation And Plastic Adhesive Tape
G08421710Courtesy of BMW OF NORTH AMERICA, INC.
