61 31 310 Replacing brake light switch

Necessary preliminary work

• Remove trim panel for pedal mechanism. See.51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).

Installation note:

• Press brake pedal (3) to floor.
• Push brake light switch (2) as far as it will go into brake light switch holder (4).
• Counter hold brake light switch (4) holder, slowly return brake pedal (3) to initial position and tighten to stop  .

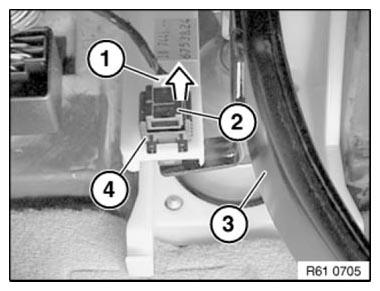

  Fig 1: Pulling Brake Light Switch From Brake Light Switch Holder

  Courtesy of BMW OF NORTH AMERICA, INC.

Press brake pedal.

Unclip brake light switch holder (1) at shanks (2) and remove towards rear.

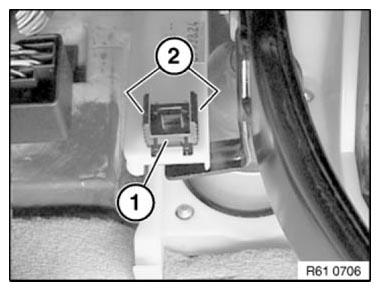

Fig 2: Identifying Brake Light Switch Holder And Shanks

Courtesy of BMW OF NORTH AMERICA, INC.
