61 31 083 Removing and installing/replacing switch for unlocking tailgate

Special tools required:

• 00 9 323

Lever switch for tailgate unlocking (1) sideways out of A-pillar trim panel (2) using special tool 00 9 323 .

Disconnect associated plug connection and remove switch for unlocking rear lid (1).

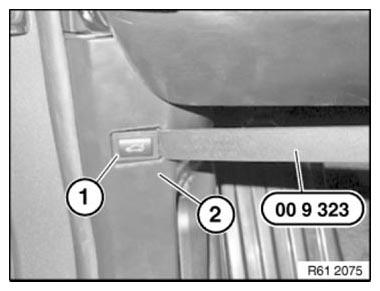

Fig 1: Removing Switch For Unlocking Rear Lid From A-Pillar Trim Panel Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.
