61 67 200 Removing and installing/replacing washer jet for Night Vision camera

Necessary preliminary tasks

Release screws (1).

Remove high-pressure nozzle (2) from Night Vision camera (3).

Installation note:

New washer jet is already preset.

Run a function check.

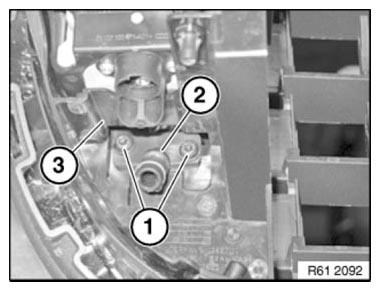

Fig 1: Identifying High-Pressure Nozzle, Night Vision Camera And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
