63 21... Removing and installing/replacing trim for rear light on left or right
Necessary preliminary tasks
- Remove LEFT REAR LIGHT .

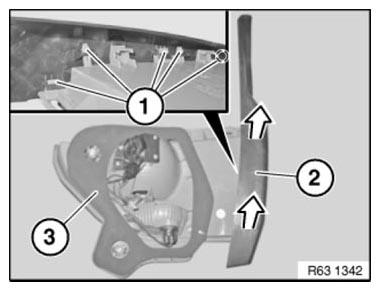

Carefully unclip retaining lugs (1).
Remove trim (2) from rear light (3) in direction of arrow.
Installation:
- Retaining lugs (1) must not be damaged
- Ensure trim (2) is seated correctly.
