63 99 002 Replacing halogen bulb for high beam headlight on left

Open end cover of engine compartment lid seal mounting (1) in direction of arrow.

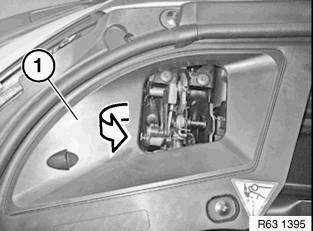

Fig 1: Opening End Cover Of Engine Compartment

Turn protective cap (1) counterclockwise and remove.

Fig 2: Turning Protective Cap Clockwise To End Stop

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Check seal. Replace protective cap (1) if necessary.

Protective cap (1) must lock correctly!

Turn the protective cap (1) clockwise to end stop (A)!

Turn bulb holder (1) in direction of arrow and remove towards rear from headlight (2).

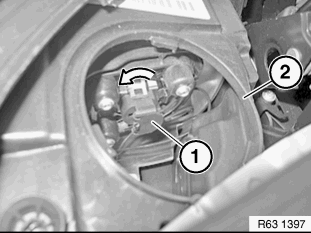

Fig 3: Turning Bulb Holder In Direction Of Arrow

Detach bulb (1) from bulb holder (2). Installation note: Make sure bulb holder (2) is seated correctly. Note bulb type.

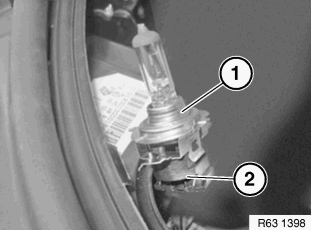

Fig 4: Detaching Bulb From Bulb Holder
