61 31 204 Replacing operating unit for seat adjustment

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Release screws (1).

Raise operating unit for seat adjustment (2).

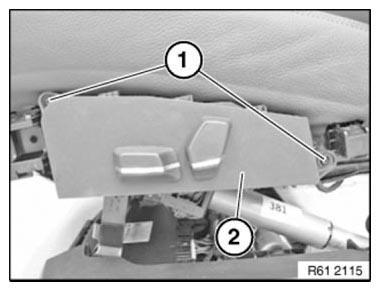

Fig 1: Identifying Seat Adjusting Operating Unit And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove operating unit for seat adjustment.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
