61 35 970 Removing and installing/replacing interior antenna for Comfort Access system (luggage compartment at front)

Necessary preliminary tasks

• Remove spare wheel well trim panel at front. See 51 47... REMOVING AND INSTALLING/REPLACING REAR SPARE WHEEL WELL TRIM PANEL .

Disconnect plug connection (1).

Release screw (2).

Remove interior antenna for comfort access system (3).

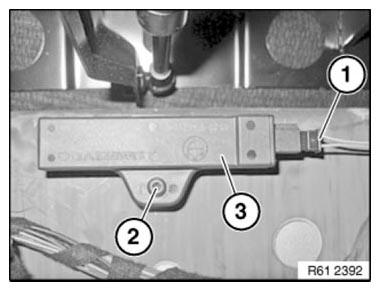

Fig 1: Identifying Plug Connection, Comfort Access System Interior Antenna And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
