Turn signal/high beam switch
The turn indicators and the high-beam headlight are controlled by turn signal/high beam switch on the steering column switch cluster.
The signal for the turn signal/high beam switch is sent by the steering column switch cluster The footwell module (FRM) or front electronics module (FEM) or Body Domain Controller (BDC) receives the signals from the turn signal/high beam switch via the central gateway module (ZGM).

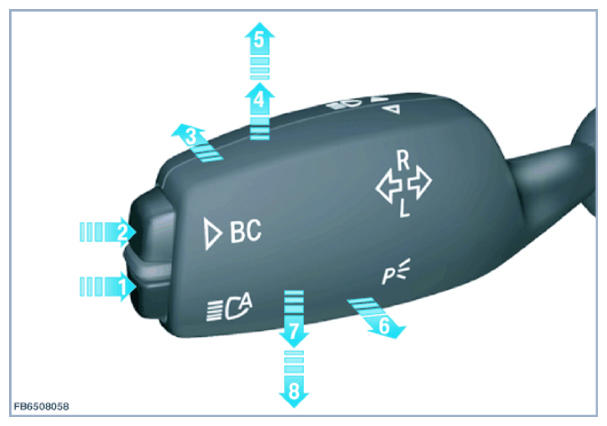

| Item | Explanation |
|---|---|
| 1 | Non-glare high-beam assistant button |
| 2 | On-board computer button |
| 3 | High-beam headlight |
| 4 | One-touch flashing, right |
| 5 | Continuous flashing, right |
| 6 | Headlight flasher |
| 7 | One-touch flashing, left |
| 8 | Continuous flashing, left |
