System overview
A complex composite system with distributed functions in other control units is necessary for the implementation of the targeted illumination system. The targeted illumination system is only available in conjunction with the optional equipment BMW Night Vision with person recognition.

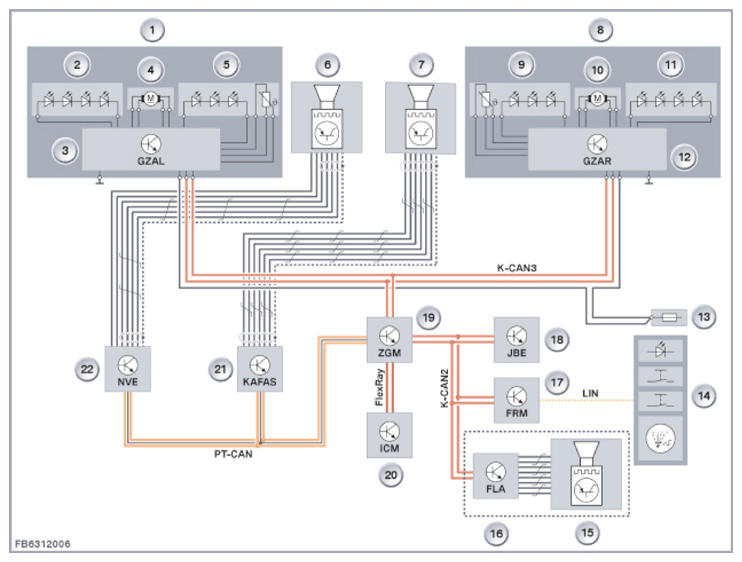

The graphic below shows an example of the system network for the targeted illumination F01.
| Item | Explanation |
|---|---|
| 1 | Headlights for left-hand targeted illumination |
| 2 | Left positioning light |
| 3 | Control unit for left-hand targeted illumination (GZAL) |
| 4 | Left stepper motor |
| 5 | Left function indicator light and temperature sensor |
| 6 | Night Vision Camera |
| 7 | Camera-based driver support systems camera |
| 8 | Headlight for right-hand targeted illumination |
| 9 | Right function indicator light and temperature sensor |
| 10 | Right stepper motor |
| 11 | Right positioning light |
| 12 | Control unit for right-hand targeted illumination (GZAR) |
| 13 | Power distribution box, rear |
| 14 | Operating facility light with light switch |
| 15 | FLA camera, not in combination with the KAFAS camera |
| 16 | High-beam assistant (FLA), not in combination with the KAFAS (i.e., the FLA function is integrated in the KAFAS control unit) |
| 17 | Footwell module (FRM) |
| 18 | Junction Box Electronics (JBE) |
| 19 | Central gateway module (ZGM) |
| 20 | Integrated chassis management (ICM) |
| 21 | Camera-based driver support systems camera control unit |
| 22 | Night vision electronics (NVE) |

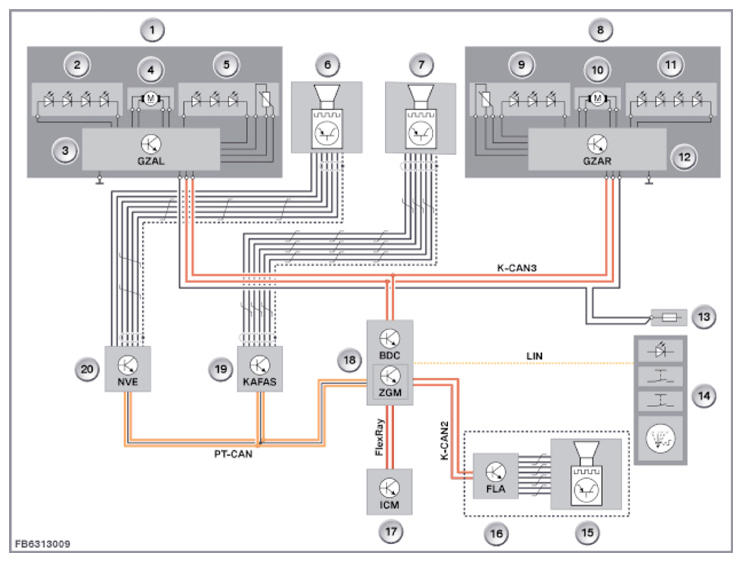

The graphic below shows an example of the system network for the targeted illumination F15.
| Item | Explanation |
|---|---|
| 1 | Headlights for left-hand targeted illumination |
| 2 | Left positioning light |
| 3 | Control unit for left-hand targeted illumination (GZAL) |
| 4 | Left stepper motor |
| 5 | Left function indicator light and temperature sensor |
| 6 | Night Vision Camera |
| 7 | Camera-based driver support systems camera |
| 8 | Headlight for right-hand targeted illumination |
| 9 | Right function indicator light and temperature sensor |
| 10 | Right stepper motor |
| 11 | Right positioning light |
| 12 | Control unit for right-hand targeted illumination (GZAR) |
| 13 | Power distribution box, rear |
| 14 | Operating facility light with light switch |
| 15 | FLA camera, not in combination with the KAFAS camera |
| 16 | High-beam assistant (FLA), not in combination with the KAFAS (i.e., the FLA function is integrated in the KAFAS control unit) |
| 17 | Integrated chassis management (ICM) |
| 18 | Body Domain Controller (BDC), central gateway module (ZGM) integrated as independent control unit |
| 19 | Camera-based driver support systems camera control unit |
| 20 | Night vision electronics (NVE) |
