Subwoofer fanfare and tweeter fanfare
When pressure is applied to the horn switch, the fanfares generate a sound signal. A horn generates sound by means of a rapidly vibrating diaphragm (the diaphragm is vibrated by means of electrical current). In addition to the diaphragm, the fanfare also has a spiral funnel which reinforces the sound of the diaphragm.
Due to their high power requirement, fanfares are switched on via a relay, the fanfare horn relay.

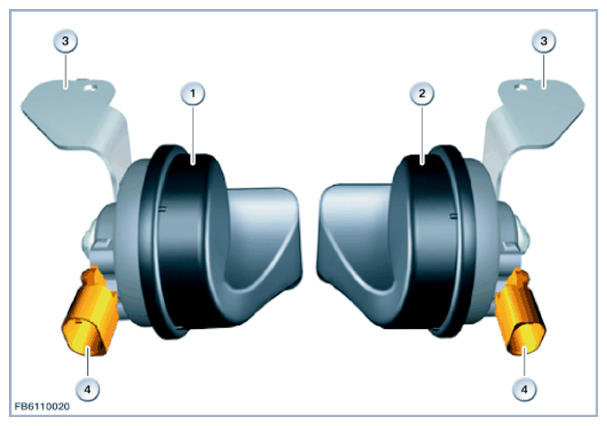

The following graphic shows the fanfares on the example F01.
| Item | Explanation |
|---|---|
| 1 | Tweeter fanfare |
| 2 | Subwoofer fanfare |
| 3 | Holder |
| 4 | two-pin plug connection |
