Central instrument (MINI only)
The central instrument is a ring around the headunit that is illuminated with LEDs. It is connected to the headunit via the local interconnect network bus.
In the basic version it acts as locator lighting only (terminal 58g).
In the high version data is transmitted via the local interconnect network bus. This allows different lighting effects for the central instrument.

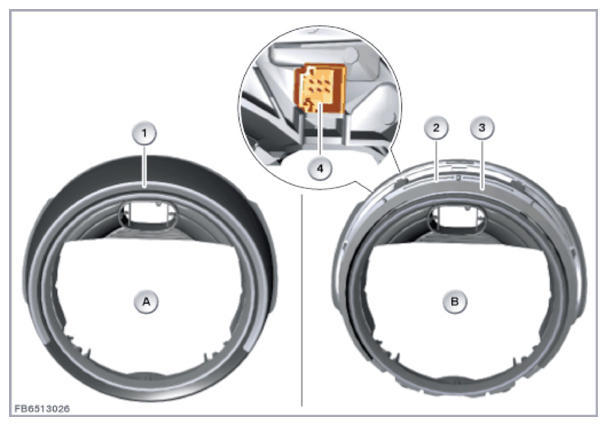

| Item | Explanation |
|---|---|
| A | Central instrument cover |
| B | Central instrument |
| 1 | Cover |
| 2 | Central instrument housing |
| 3 | Ring-shaped lighting with LEDs |
| 4 | six-pin plug connection |
