65 50 025 Removing and installing/replacing video switch

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Necessary preliminary tasks

Remove left luggage compartment panel end cover (1).

Remove luggage compartment flap (2).

Fig 1: Identifying Luggage Compartment Trim Panel Lid And Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left floor panel support (3).

Installation:

Expanding rivets (2) must not be damaged.

Fig 2: Identifying Left Shelf Support, Expanding Rivets And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

Remove video switch (3).

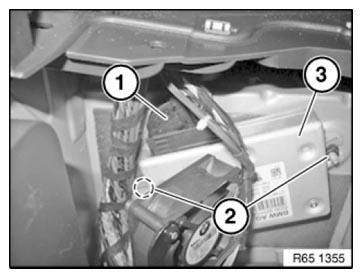

Fig 3: Identifying Plug Connection, Video Switch And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
