65 12 072 Removing and installing (replacing) amplifier (Top HiFi system)

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary work

Disconnect NEGATIVE BATTERY CABLE .

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation note:

Make sure lid (1) and flap (2) are correctly seated.

Fig 1: Identifying Luggage Compartment Trim Panel Lid And Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Fig 2: Identifying Left Shelf Support, Expanding Rivets And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

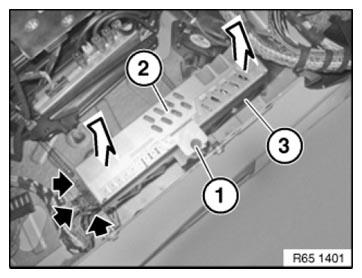

Release screw (1).

Remove amplifier (2) in direction of arrow from holder (3).

Unlock plug connections and disconnect.

Fig 3: Removing Amplifier From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Until 09/2009 a Top Hifi amplifier with a different pin assignment is installed!

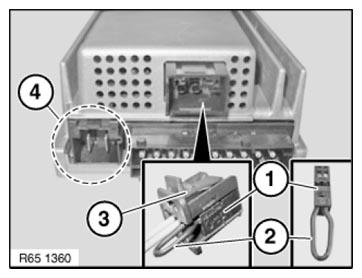

Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).

Create wire jumper (2) from wire (cross-section 0.75 mm² ) and two stops (BMW Parts Department 1393724). Then connect pins 1 and 2 in the socket (1) with wire jumper (2).

Fig 4: Identifying Socket, Wire Jumper, Connector And Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Connector chamber (4) is not included in current version and remains unused in new replacement Top HiFi amplifier!

NOTE: Picture for example purposes.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Fig 5: Identifying Amplifier, Guide And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .
