65 12 071 Removing and installing/replacing amplifier

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary work

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation note:

Make sure lid (1) and flap (2) are correctly seated.

Fig 1: Identifying Luggage Compartment Trim Panel Lid And Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Fig 2: Identifying Left Shelf Support, Expanding Rivets And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove amplifier (4) including holder (2).

Unfasten plug connections (3) and disconnect.

Replacement

Remove amplifier (4) including holder (3).

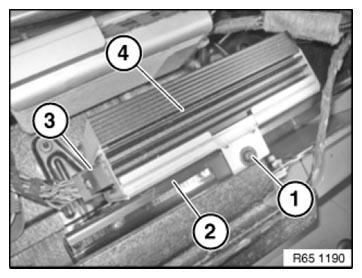

Fig 3: Identifying Amplifier, Plug Connections, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

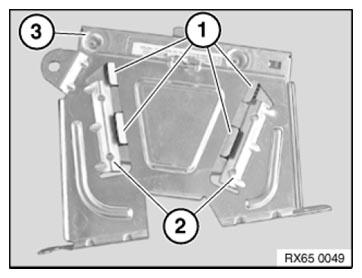

Fig 4: Identifying Amplifier, Guide And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

For vehicle with production date up to 09/2010 , carry out conversion in the diagnosis system via path:

NOTE: On vehicle with production date after 09/2010 , no vehicle programming / encoding needs to be carried out!
