65 13 120 Removing and installing/replacing speaker (tweeter, C-pillar)

Installation:

• Remove bottom left trim cover on C-pillar. See 51 43 230 REMOVING AND INSTALLING / REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT .

Unclip tweeter (1) from C-pillar trim cover (3) and remove.

Installation:

Ensure correct cable routing.

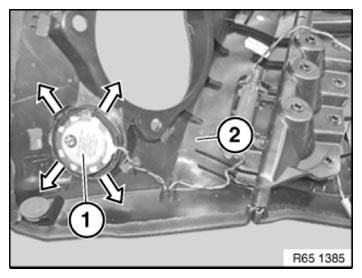

Fig 1: Removing Tweeter From C-Pillar Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.
