65 13 110 Removing and installing/replacing speaker (mid-range speaker in C-pillar)

Special tools required:

• 00 9 325

Carefully lift out trim (1) with special tool 00 9 325 .

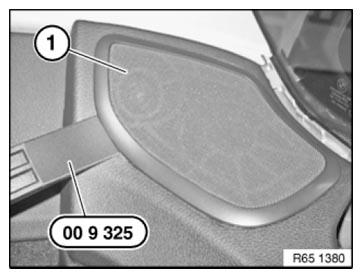

Fig 1: Lifting Out Trim Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove speaker (2).

Disconnect plug connections behind.

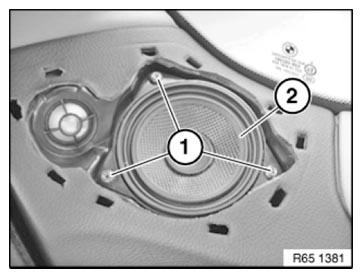

Fig 2: Identifying Speaker And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
