65 13 080 Removing and installing/replacing speaker (tweeter, door at rear)

Necessary preliminary tasks

• Remove rear door trim panel. See 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Disconnect plug connection (1).

Unlock catches (2).

Remove speaker (3) from rear door trim panel.

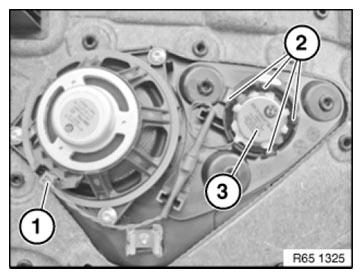

Fig 1: Identifying Speaker, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
